MISTRESA YAĞ BUHARI EMİCİLER
CRM TİPİ (YATAY SERİ)
Çoklu seçim serisi Mistresa CRM tipi
Filtreleri serbestçe seçim yapabilme sistemi
Kurulumu ve bakımı kolay sistem
Ürün Dizisine Geri Dön
Kullanım Amacı ve Özellikleri
KULLANIM ALANLARI
- Üretim makineleri
- Diğer makineler
- Mükemmel motor özellikleri
- Motor ısı koruma ünitesi
- Kolay tahliye yapısı
- Basit, karmaşadan uzak
- Güvenli bakım olanağı
- Buhar ve toz için
- Basit tıkanma kontrolü
- Yüksek toplama performansı
Teknik Özellikler
| Model | Yardımcı emme flanş çapı (mm) |
Faz | Çıkış gücü | 50Hz | 60Hz | ||
|---|---|---|---|---|---|---|---|
| Max hava akışı (m3/min) | Max statik basınç (kPa) | Max hava akışı (m3/min) | Max statik basınç (kPa) | ||||
| CRM-H02-S11 | 98 | 3 | 0.2 | 4.1 | 0.55 | 4.8 | 0.75 |
| CRM-H02-S12 | 98 | 3 | 0.2 | 5.4 | 0.55 | 6.2 | 0.75 |
| CRM-H02-S13 | 98 | 3 | 0.2 | 4.6 | 0.55 | 5.4 | 0.75 |
| CRM-H02-S21 | 98 | 3 | 0.2 | 3.8 | 0.55 | 4.5 | 0.75 |
| CRM-H02-S22 | 98 | 3 | 0.2 | 5.1 | 0.55 | 5.8 | 0.75 |
| CRM-H02-S23 | 98 | 3 | 0.2 | 4.3 | 0.55 | 5.1 | 0.75 |
| CRM-H04-S11 | 98 | 3 | 0.4 | 4.4 | 0.75 | 5.2 | 1.1 |
| CRM-H04-S12 | 98 | 3 | 0.4 | 6 | 0.75 | 7 | 1.1 |
| CRM-H04-S13 | 98 | 3 | 0.4 | 4.9 | 0.75 | 5.9 | 1.1 |
| CRM-H04-S21 | 98 | 3 | 0.4 | 4.1 | 0.75 | 4.9 | 1.1 |
| CRM-H04-S22 | 98 | 3 | 0.4 | 5.5 | 0.75 | 6.8 | 1.1 |
| CRM-H04-S23 | 98 | 3 | 0.4 | 4.6 | 0.75 | 5.6 | 1.1 |
| CRM-H07-S11 | 123 | 3 | 0.75 | 8.4 | 1.1 | 9.8 | 1.6 |
| CRM-H07-S12 | 123 | 3 | 0.75 | 9.8 | 1.1 | 11.5 | 1.6 |
| CRM-H07-S13 | 123 | 3 | 0.75 | 8 | 1.1 | 9.6 | 1.6 |
| CRM-H07-S21 | 123 | 3 | 0.75 | 7.8 | 1.1 | 9.4 | 1.6 |
| CRM-H07-S22 | 123 | 3 | 0.75 | 9.2 | 1.1 | 10.5 | 1.6 |
| CRM-H07-S23 | 123 | 3 | 0.75 | 7.6 | 1.1 | 9.2 | 1.6 |
| CRM-H15-S11 | 148 | 3 | 1.5 | 15 | 1.6 | 18 | 2.25 |
| CRM-H15-S12 | 148 | 3 | 1.5 | 18 | 1.6 | 21.5 | 2.25 |
| CRM-H15-S13 | 148 | 3 | 1.5 | 15 | 1.6 | 18 | 2.25 |
| CRM-H15-S21 | 148 | 3 | 1.5 | 14.5 | 1.6 | 17.5 | 2.25 |
| CRM-H15-S22 | 148 | 3 | 1.5 | 17 | 1.6 | 20 | 2.25 |
| CRM-H15-S23 | 148 | 3 | 1.5 | 14.5 | 1.6 | 17.5 | 2.25 |
| CRM-H22-S11 | 198 | 3 | 2.2 | 18 | 1.7 | 21.5 | 2.4 |
| CRM-H22-S12 | 198 | 3 | 2.2 | 24.5 | 1.7 | 28.5 | 2.4 |
| CRM-H22-S13 | 198 | 3 | 2.2 | 18.5 | 1.7 | 22.5 | 2.4 |
| CRM-H22-S21 | 198 | 3 | 2.2 | 17.5 | 1.7 | 20.5 | 2.4 |
| CRM-H22-S22 | 198 | 3 | 2.2 | 22.5 | 1.7 | 27 | 2.4 |
| CRM-H22-S23 | 198 | 3 | 2.2 | 18 | 1.7 | 21 | 2.4 |
| Model | Toplama verimliliği (%) | Maksimum emme hava sıcaklığı (°C) | Gürültü (dB(A)) 50/60Hz | Ağırlık (kg) |
|---|---|---|---|---|
| CRM-H02-S11 | 98.4 | 50 | 64/67 | 26 |
| CRM-H02-S12 | 99.2 | 50 | 64/67 | 26 |
| CRM-H02-S13 | 99.6 | 50 | 64/67 | 26 |
| CRM-H02-S21 | 98.9 | 50 | 64/67 | 26 |
| CRM-H02-S22 | 99.5 | 50 | 64/67 | 26 |
| CRM-H02-S23 | 99.8 | 50 | 64/67 | 26 |
| CRM-H04-S11 | 98.4 | 50 | 68/72 | 32 |
| CRM-H04-S12 | 99.2 | 50 | 68/72 | 32 |
| CRM-H04-S13 | 99.6 | 50 | 68/72 | 32 |
| CRM-H04-S21 | 98.9 | 50 | 68/72 | 32 |
| CRM-H04-S22 | 99.5 | 50 | 68/72 | 32 |
| CRM-H04-S23 | 99.8 | 50 | 68/72 | 32 |
| CRM-H07-S11 | 98.4 | 50 | 73/78 | 42 |
| CRM-H07-S12 | 99.2 | 50 | 73/78 | 42 |
| CRM-H07-S13 | 99.6 | 50 | 73/78 | 42 |
| CRM-H07-S21 | 98.9 | 50 | 73/78 | 42 |
| CRM-H07-S22 | 99.5 | 50 | 73/78 | 42 |
| CRM-H07-S23 | 99.8 | 50 | 73/78 | 42 |
| CRM-H15-S11 | 98.4 | 50 | 81/83 | 67 |
| CRM-H15-S12 | 99.2 | 50 | 81/83 | 67 |
| CRM-H15-S13 | 99.6 | 50 | 81/83 | 67 |
| CRM-H15-S21 | 98.9 | 50 | 81/83 | 67 |
| CRM-H15-S22 | 99.5 | 50 | 81/83 | 67 |
| CRM-H15-S23 | 99.8 | 50 | 81/83 | 67 |
| CRM-H22-S11 | 98.4 | 50 | 83/86 | 77 |
| CRM-H22-S12 | 99.2 | 50 | 83/86 | 77 |
| CRM-H22-S13 | 99.6 | 50 | 83/86 | 77 |
| CRM-H22-S21 | 98.9 | 50 | 83/86 | 77 |
| CRM-H22-S22 | 99.5 | 50 | 83/86 | 77 |
| CRM-H22-S23 | 99.8 | 50 | 83/86 | 77 |

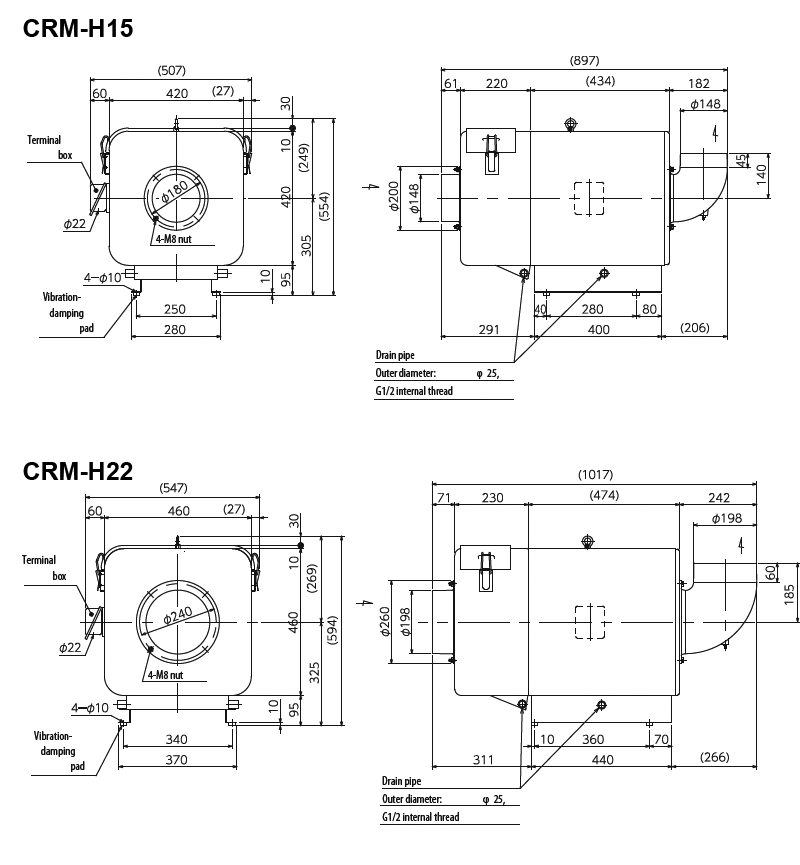

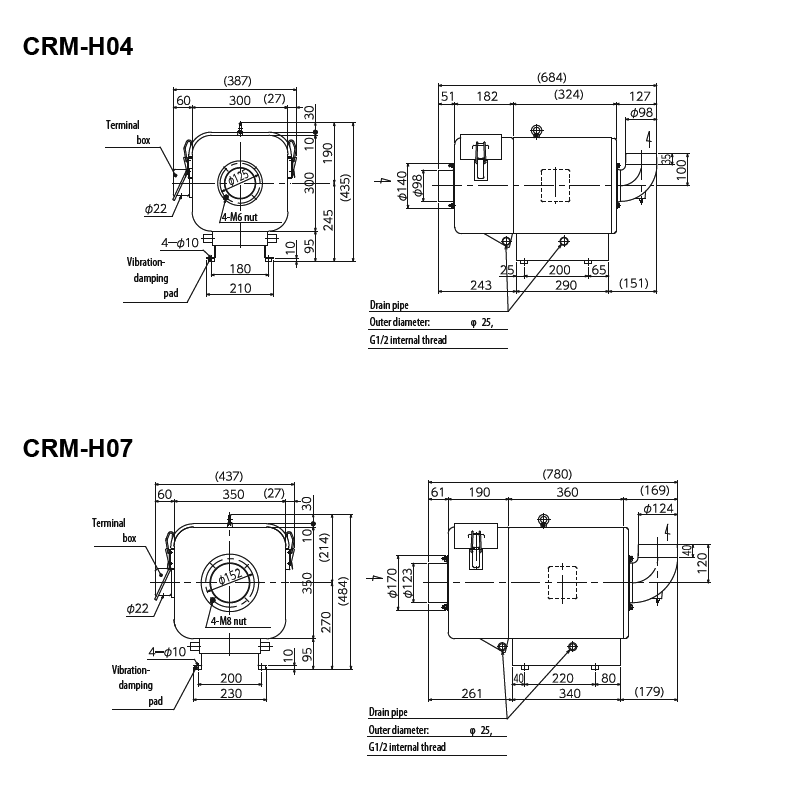

DIŞ ÖLÇÜLER
